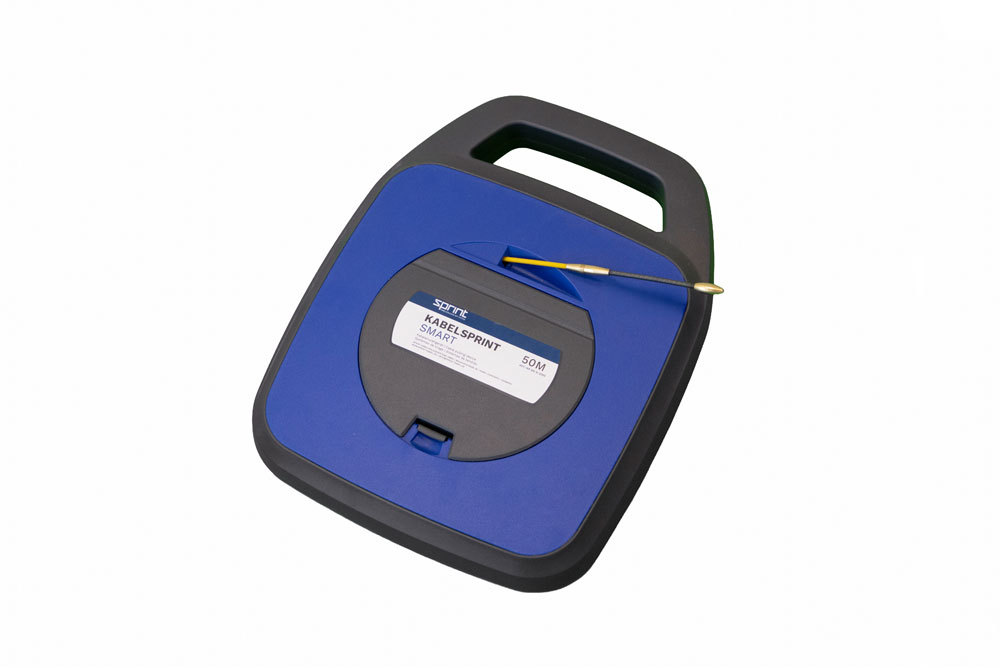

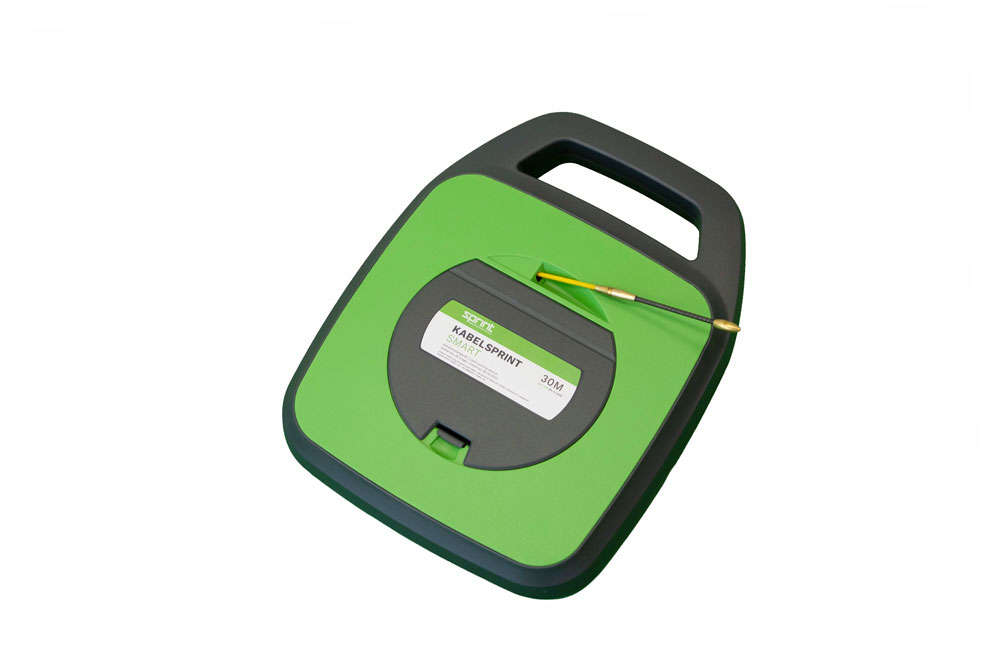

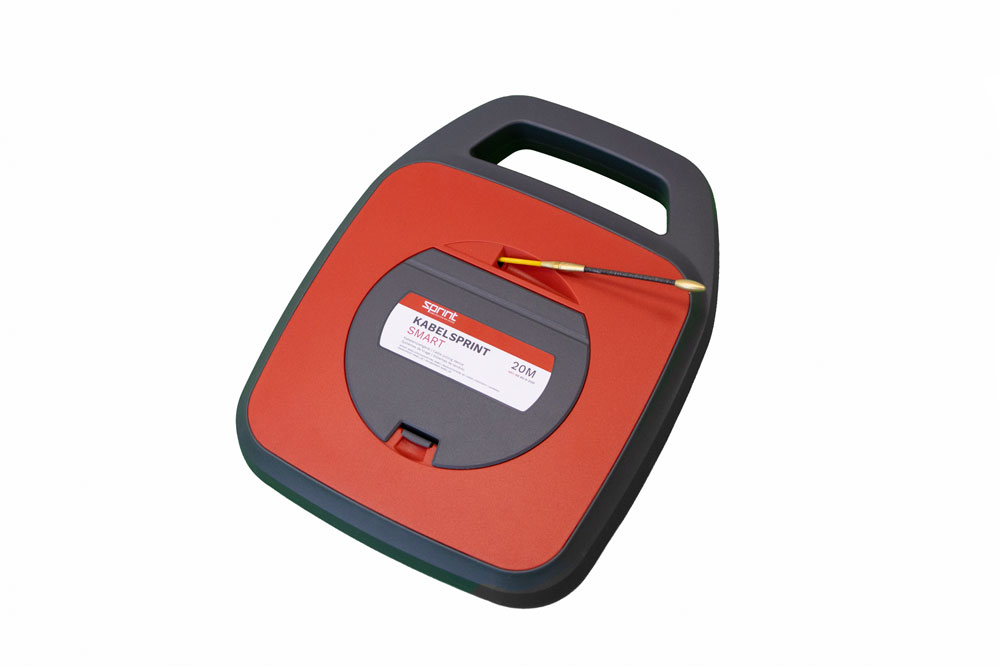

Cable Pulling System Cabelsprint Standard
The challenges of cable pulling are diverse – from too small conduits to rigid cables. Here, cable pulling systems provide the perfect solution. Their application is particularly crucial for delicate cables to prevent damage. Our cable pulling system with a 3 mm fiber optic profile includes all necessary accessories for effortless cable installation. The CableSprint Standard cable pulling system has been specifically designed for trouble-free cable installation in conduit systems within residential buildings, with a length of up to 50 meters. This eliminates the time-consuming and laborious process of cable installation in the fields of electrical, telephone, and antenna systems. Thanks to the proven use of push-stable, smoothly coated fiber optic profiles combined with special, laterally movable guide heads, the CableSprint Standard cable pulling system enables smooth and efficient work, even in cases of extreme pipe bends with tight bending radii in already occupied conduits.
 |
 |
 |
 |
 |
3,0 mm |
50 mm |
5,0 kN |
1,0 kN |
20-50 m |

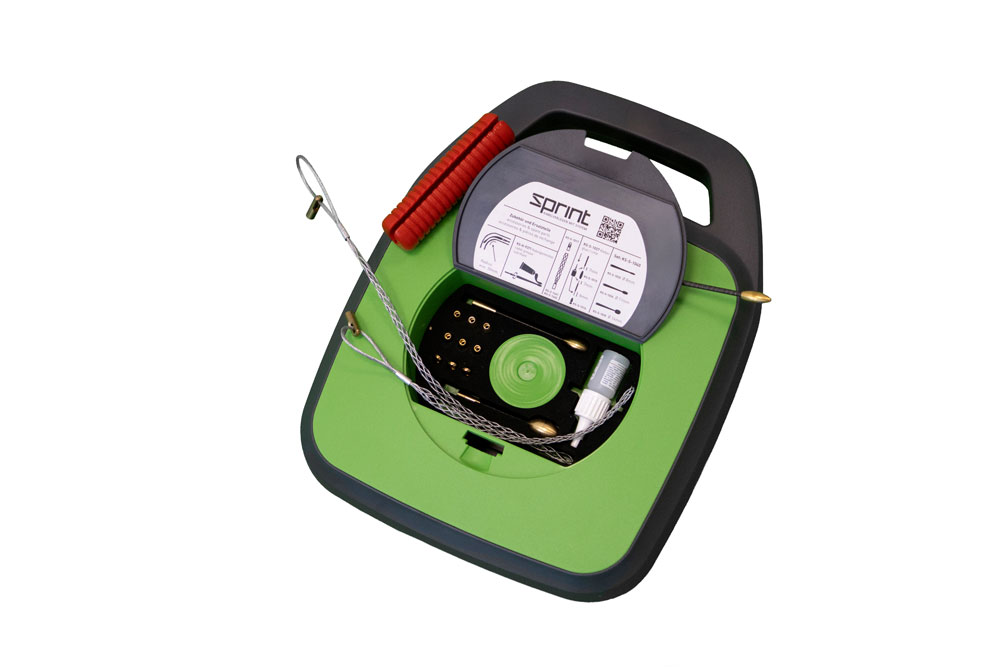

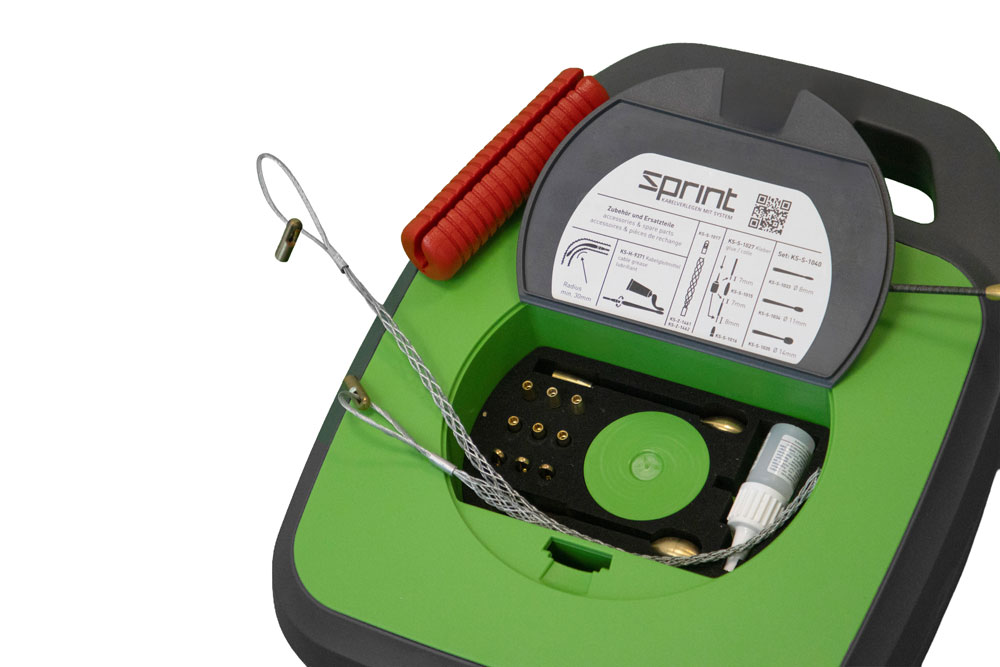

Our cable pulling system comes complete with 2 cable pulling socks (6 – 9 mm and 9 – 12 mm), a spring guide head set, a convenient pull handle, an instruction manual, and a repair kit. This ensures you are optimally equipped for a smooth installation.
Length |
Weight |
Item No. Red |
Item No. Blue |
20 m |
1,25 kg |
KS-S-1120 |
KS-S-1220 |
30 m |
1,35 kg |
KS-S-1130 |
KS-S-1230 |
50 m |
1,55 kg |
KS-S-1150 |
KS-S-1250 |
Equipment
Description |
Length |
Weigth |
Item No. |
Glasfaser – Ersatzband Standard |
20 m |
0,30 kg |
KS-S-1320 |
Glasfaser – Ersatzband Standard |
30 m |
0,40 kg |
KS-S-1330 |
Glasfaser – Ersatzband Standard |
50 m |
0,60 kg |
KS-S-1350 |
Description |
cable-Ø |
Bruchlast |
Verlegezugkraft |
Wirklänge |
Item No. |
Kabelziehstrumpf
Standard & Junior |
4-6 mm |
2 kN |
1,3 kN |
100 mm |
KS-Z-7060 |
Kabelziehstrumpf
Standard & Junior |
6-9 mm |
2 kN |
1,3 kN |
120 mm |
KS-Z-7061 |
Kabelziehstrumpf
Standard & Junior |
9-12 mm |
2 kN |
1,3 kN |
180 mm |
KS-Z-7062 |
Kabelziehstrumpf
Standard & Junior |
12-15 mm |
2 kN |
1,3 kN |
230 mm |
KS-Z-7063 |
Kabelziehstrumpf
Standard & Junior |
15-19 mm |
8,1 kN |
5,4 kN |
280 mm |
KS-Z-7064 |
Description |
Ø |
Quantity |
Item No. |
Führungskopf-Set |
8 mm |
3 |
KS-S-1033 |
Führungskopf-Set |
11 mm |
3 |
KS-S-1034 |
Führungskopf-Set |
14 mm |
3 |
KS-S-1035 |
Führungskopf-Set |
Set 8/11/14 mm |
je 1 |
KS-S-1042 |
Description |
Quantity |
Item No. |
Anfangshülse Außengewinde M5 |
3 |
KS-S-1016 |
Description |
Quantity |
Item No. |
Zugöse Innengewinde |
3 |
KS-S-1017 |
Description |
Quantity |
Item No. |
Verbindungshülse für Ø 3mm |
1 |
KS-S-1015 |
Description |
Contents |
Quantity |
Item No. |

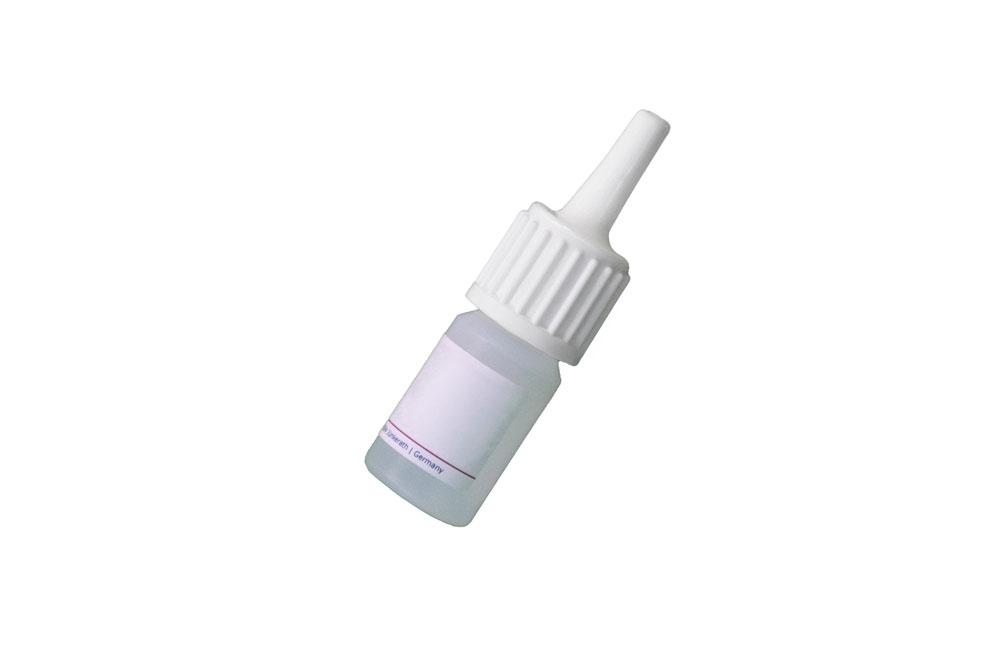

Glasfaserkleber |
5gr |
1 |
KS-S-1027 |
Description |
for cable Ø |
Quantity |
Item No. |

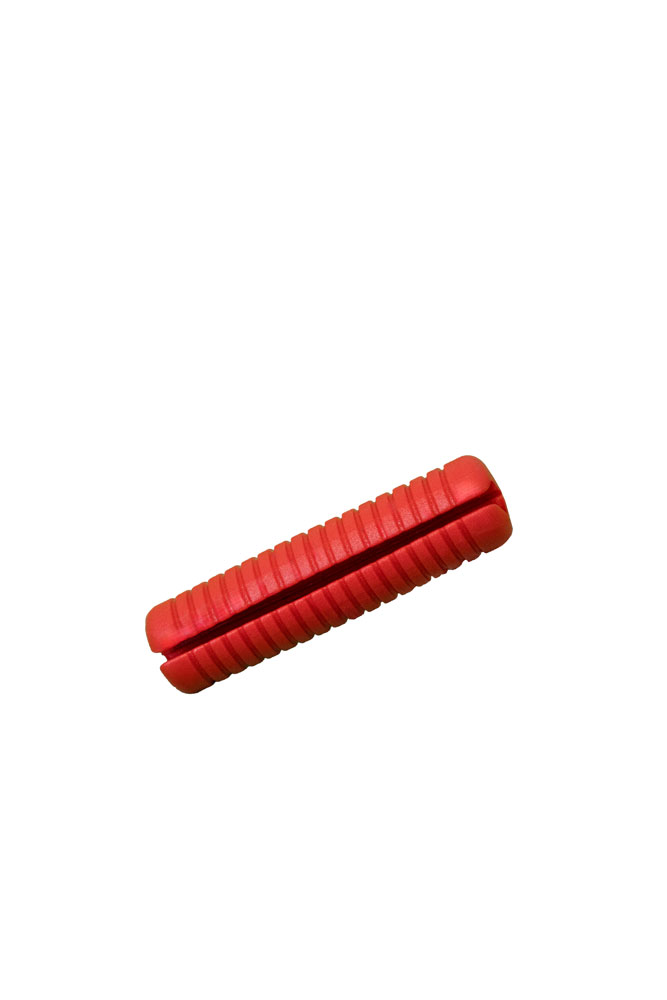

Zuggriff geeignet für Glaserfaser-, Nylon – und Stahleinziehbänder |
3-20mm |
1 |
KS-S-1030 |
